While Array Cables act as the wind farm's "neural network," Export Cables are the "power highways." These heavy-duty, high-voltage lifelines are responsible for transporting massive amounts of generated energy from the offshore substation back to the shore.
Due to their large diameters and static subsea positioning, Export Cables demand a protection strategy focused on structural armor and long-term environmental stability.
The Unique Challenges of Export Cable Protection
Unlike the dynamic environment of turbines, Export Cables are often laid across vast stretches of the seabed, facing different but equally severe risks:
1. Seabed Scouring & Free Spans: Intense currents can wash away the sediment beneath the cable, creating "free spans" where the cable hangs unsupported, leading to excessive structural tension.
2. External Mechanical Impact: These cables are vulnerable to accidental damage from ship anchors, commercial fishing gear, and rock dumping operations.
3. Shore Landing Abrasion: In shallow water and "landfall" areas, the cable is exposed to constant grinding against coastal rocks and shifting sands.
4. High-Voltage Thermal Load: Export cables carry significantly higher currents, requiring protection systems that won't compromise heat dissipation.

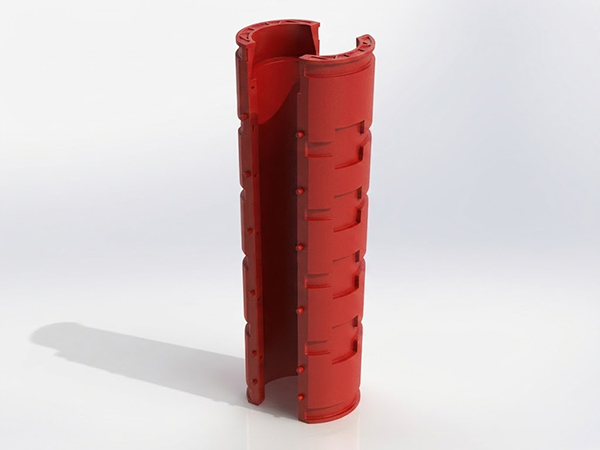

Heavy-Duty Polyurethane: The Ultimate Subsea Armor
For Export Cables, we utilize a specialized High-Density Polyurethane (PU) formulation. This isn't just a sleeve; it is a precision-engineered armor system designed for maximum durability.
1. High Impact & Crush Resistance: Export Cables require a material with high Shore Hardness (typically 95A or D-grade). Our polyurethane sleeves are designed to absorb and distribute the energy from massive impacts, protecting the sensitive internal insulation and conductors from deformation or crushing.
2. Ballast & Stability (Anti-Scour Protection): In areas prone to scouring, our Polyurethane Protector Sleeves can be engineered with added weight or specific hydrodynamic profiles. This provides necessary ballast to keep the cable firmly anchored to the seabed, suppressing movement caused by high-velocity bottom currents.
3. Abrasion-Proof for Shore Landings: The near-shore segment of an Export Cable is the most prone to wear. Our PU protectors exhibit an extremely low wear rate, far outperforming traditional steel or HDPE pipes in resisting the "sandblasting" effect of turbulent coastal waters.
Strategic Application Scenarios
Shore Landing & Rock Crossings: Providing a rugged shield against abrasive geological formations.
1. Cable Crossing Protection: Ensuring safety when the Export Cable must cross existing subsea pipelines or telecommunication lines.
2. Horizontal Directional Drilling (HDD) Exits: Protecting the cable as it emerges from underground conduits into the marine environment.
Conclusion: Ensuring Grid Connection Integrity
The failure of an Export Cable can result in the total shutdown of a wind farm's power delivery. By deploying High-Performance Polyurethane Protectors, operators secure their most critical infrastructure against the unpredictable forces of the deep sea.
