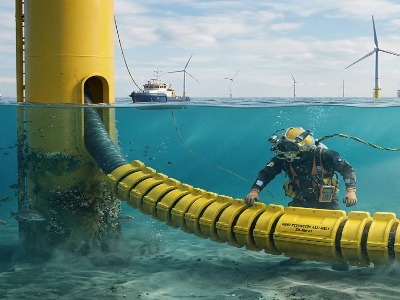

Bend Restrictors (BR) in the Dutch Offshore Wind Sector
1. What is a Bend Restrictor?
A Bend Restrictor is a semi-rigid protection device composed of multiple interlocking modules, typically manufactured from high-strength polyurethane or metallic materials.
Core Function: It prevents subsea cables from exceeding their Minimum Bend Radius (MBR) when subjected to wave action, tidal currents, or installation tension.
Operating Principle: When the cable bends under force, the modules move in an articulated fashion. Once the preset limit angle is reached, the modules mechanically lock together to form a rigid arc, effectively "locking" the curvature.
2. Why is it Vital for Dutch Offshore Wind Farms?
The Netherlands’ offshore wind farms face unique geographical and technical challenges that make Bend Restrictors an essential requirement:
Dynamic Seabed Environments: Dutch waters often feature sandy seabeds prone to scour. When sand around the turbine foundation is washed away, buried cables can become suspended and exposed. The BR ensures these free-span sections are not snapped by currents.
High-Capacity Cable Protection: New Dutch projects commonly utilize 220 kV or higher export cables. These cables are large in diameter and extremely heavy (often weighing dozens of kilograms per meter), making them hypersensitive to over-bending.
Lifecycle Assurance: With operational lifespans typically set for 25–30 years, BRs significantly reduce the risk of cable failure due to fatigue damage by distributing dynamic loads.
3. Technical Applications and Installation Scenarios
| Installation Location | Primary Function |
| J-Tube Outlets | Protects the transition zone where the cable exits the turbine foundation to the seabed, preventing vibration caused by hydrodynamics. |
| Cable Joints | Provides structural support during repair connections (Inline Joints) or Omega-loop connections between two cable segments. |
| Shore Landings | Protects the cable in shallow nearshore waters from the bending stress caused by repetitive wave action. |
In the complex and ever-changing environment of the North Sea, the precision of every Bend Restrictor is vital to the entire wind farm's lifecycle.
If you are seeking Cable Protection System (CPS) solutions tailored for the Dutch offshore wind market or require professional technical consultancy, please feel free to contact our engineering team.
