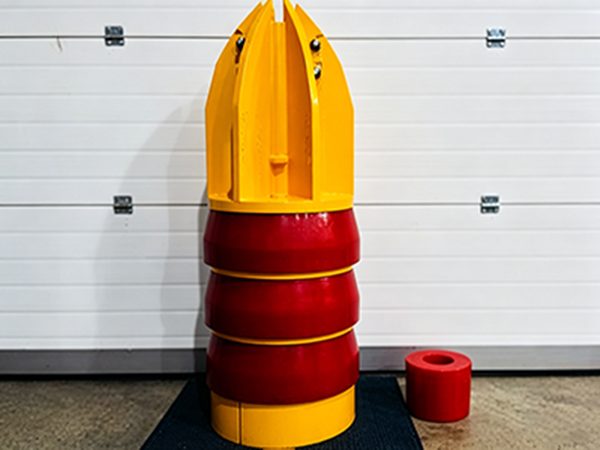

The Deepwater J-tube Seal is a critical component of J-tube centralizer systems, designed to protect subsea cable and pipeline infrastructure. Typically engineered with a conical or D-shaped structure, these seals utilize advanced micro-elastic polymer materials to provide superior protection in harsh marine environments.
Technical Specifications & API Compliance
Our deepwater J-tube seal designs strictly adhere to the American Petroleum Institute (API) Manual recommendations to ensure maximum reliability:
1. Multi-Layer Protection: We recommend a 4-layer seal configuration on the J-tube centralizer for redundant safety.
2. Precision Engineering: The seal ring's outer diameter is typically 2mm to 4mm larger than the bellmouth's inner diameter.
3. Interference Fit: This specific sizing ensures constant elastic contact, creating a robust barrier against corrosion and subsea contaminants.
Key Features of the Deepwater J-tube Seal
A high-quality deepwater J-tube seal offers several technical advantages for offshore operations:
1. Pressure Management: Maintains a stable pressure differential between the interior and exterior of the J-tube bellmouth.
2. Advanced Polymer Durability: Constructed from materials with low water absorption and high resistance to hydrolysis.
3. Dynamic Elastic Contact: Ensures a secure, flexible grip between the clamp and the J-tube to accommodate movement.
4. Environmental Longevity: Features low aging characteristics and maintains peak sealing performance even during extreme thermal expansion and contraction cycles.
5. Biological Barrier: Prevents the entry of seabed organisms and prevents bio-adhesion within the J-tube assembly.
Applications in Offshore Industry
The versatility of the deepwater J-tube seal makes it an essential component for various deep-sea sectors, providing a reliable guarantee for long-term subsea integrity:
1. Offshore Wind Farms: Protecting subsea power cables at the entry point of turbine foundations.
2. Oil & Gas Development: Securing risers and flowlines in deep-water production fields.
3. Subsea Telecommunications: Ensuring the safety of critical data links.
Contact the Deepwater J-tube Seal Experts
If you are looking for more technical data or a custom quote for your next subsea project, please contact Philson. Our team specializes in high-performance deepwater J-tube seal technology to ensure your offshore operations remain secure and efficient.
