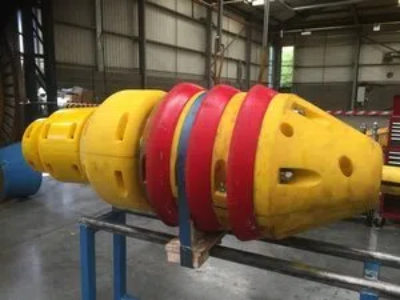

In deepwater oil, gas, and offshore wind developments, J-tube seals are critical subsea protection components. They are engineered to seal the interface between the umbilical, cable, or flexible riser, hoses and the interior of the J-tube. By creating a watertight barrier, these seals allow anti-corrosion inhibitors to be injected, preventing seawater ingress and internal J-tube structural degradation.
The Advanrtages of J-tube Seal
1. Diverless / No Subsea Installation: It features a pull-through design. The seal is pre-installed onto the subsea cable on land or deck before deployment. As the cable is pulled into the J-tube, the seal automatically locks into place at the tube mouth. This allows for 100% topside operation, eliminating the need for divers or ROVs and significantly reducing offshore construction costs and risks.
2. Interference Fit: The outer diameter of the seal is slightly larger than the inner diameter of the J-tube. Once pulled into the tube, it creates a tight seal against both the tube wall and the cable body through compressive elastic deformation. This ensures high-performance sealing while securing the cable in place, preventing friction and wear caused by marine currents.
3. Corrosion Inhibitor Retention: It forms a physical isolation barrier at the tube mouth to prevent the corrosion inhibitors injected inside the J-tube from escaping into the sea. This ensures long-term internal corrosion protection while preventing marine environmental pollution.
4. Modular & Bespoke: We support custom formulations and tailored structural configurations to accommodate different cable diameters, J-tube dimensions, single/tri-core arrangements, as well as specific water depths and wave loads.
5. High-Performance Polyurethane Material: The seal is manufactured from high-strength, hydrolysis-resistant polyurethane (PU) elastomers, engineered to withstand marine biofouling and dynamic mechanical stresses over a design life of 20 to 25 years.
Why Choose Philson’s Polyurethane J-Tube Seal?
Exceptional Subsea Longevity: Our Seal are engineered to far outperform standard industrial plastics, which significantly extends service life and drastically reduces the need for costly subsea interventions and ROV replacement cycles.
Deepwater-Validated Reliability: The product is rated for extreme ocean depths exceeding 3,000 meters and delivers proven operational stability across a wide thermal range from -20°C to +80°C.
Maximizing ROI & OPEX Efficiency: These Seals deliver virtually maintenance-free operations, thereby minimizing expensive offshore downtime and mitigating the steep costs associated with subsea repairs.
Stringent Industry Compliance: Philson’s J-tube Seal are manufactured in strict accordance with leading international subsea equipment standards, fully complying with ISO 13628-5 and API 17D criteria.
Choose Philson’s Polyurethane J-Tube Seals to secure your offshore infrastructure with maintenance-free reliability, proven deepwater performance, and unmatched subsea longevity.
How Can You Achieve a Seamless Subsea J-Tube Sealing and Topside Hang-off System?
Our J-tube seals, paired with topside Hang-offs, offer a complete solution. These systems ensure smooth cable pull-in without tearing, withstand long-term open-air deck storage, and guarantee a reliable gas-tight seal to maintain your corrosion protection environment.
