In the complex environment of offshore oil and gas and deep-sea operations, power cables, umbilicals, and flexible risers serve as supporting system functionality. However, these expensive pipelines are highly susceptible to structural damage caused by excessive bending at connection points.
Polyurethane (PU) Bend Restrictors and Bend Stiffeners serve as core protective devices in subsea engineering. Through precision material engineering and geometric design, they effectively prevent the fatigue failure of these critical assets.

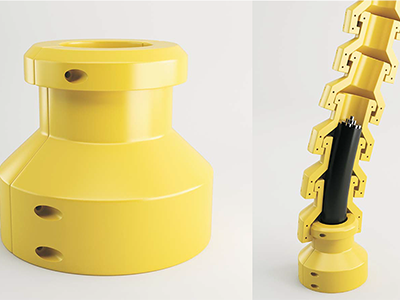

Core Functions Differences Between Bend Restrictors and Bend Stiffeners
While both devices aim to prevent excessive pipeline bending, they differ fundamentally in their working principles and application scenarios.

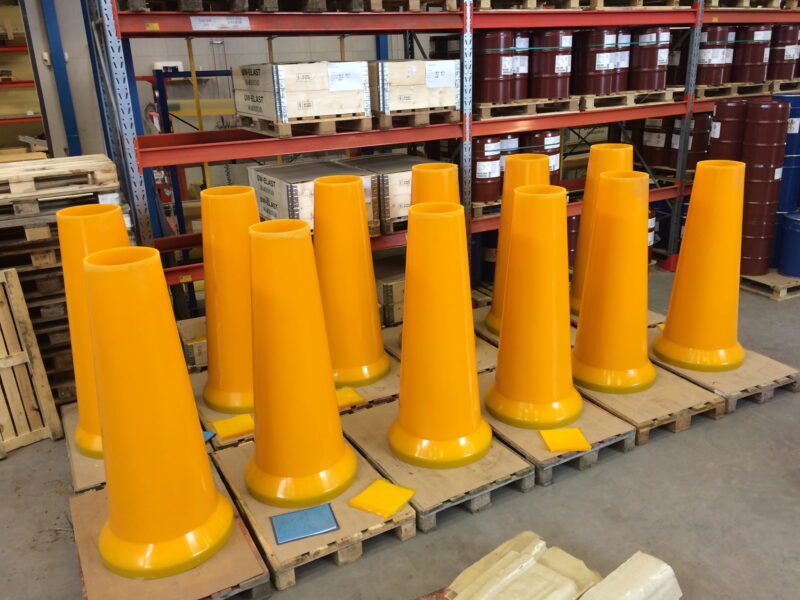

Bend Stiffeners: They utilize a geometric taper to provide a gradual transition of stiffness from the rigid connection point to the flexible pipeline. Acting like a "backbone," they redistribute forces to ensure the pipeline remains above its Minimum Bend Radius (MBR). They are primarily used at the terminal connections of hanging flexible risers or umbilicals to manage dynamic loads caused by currents and waves.
Bend Restrictors: These utilize interlocking mechanical elements that physically lock together when the pipeline reaches a pre-set bending angle, preventing any further curvature. They protect the line through a "mechanical stop" mechanism. They are often used to protect pipelines laid on the seabed, preventing excessive bending caused by installation, towing, or uneven seabed terrain.
Key Features of Polyurethane (PU) for Bend Restrictors and Stiffeners
In the harsh deep-sea environment, polyurethane is the material of choice for these components due to several key performance advantages:
Excellent Abrasion Resistance: It resists long-term erosion from sediment in currents, significantly extending the service life of the component.
High Tear Strength: It is capable of withstanding the mechanical impacts and heavy gravitational loads often encountered during installation.
Chemical & Corrosion Resistance: It maintains structural stability in cold, saline, and high-pressure deep-sea environments without degrading.
Outstanding Fatigue Resistance: It effectively handles the cyclic dynamic loads caused by waves and currents, preventing internal crack propagation.
Adjustable Modulus: Through precise chemical formulation, the material’s hardness and flexibility can be tailored to meet the specific requirements of any engineering project.
Industry Applications for Bend Limiter and Stiffeners
Beyond the traditional pillar of Subsea Oil & Gas, these high-reliability protection devices are increasingly critical in several other sectors:
Offshore Wind Energy: Used at the connection points between wind turbine towers and the seabed, as well as on dynamic sections of floating offshore wind platforms to prevent cable bending due to oscillation.
Subsea Observatories: Protecting cables at the junction with seabed nodes to ensure continuous data transmission, even on rugged or uneven terrain.
Deep-Sea Mining: Essential at the end of vertical riser systems to accommodate the movement of mining vehicles and protect against dynamic fatigue in continuous operations.
Underwater Defense & Surveillance: Ensuring the longevity and signal integrity of sonar arrays and fixed monitoring links in complex marine environments.
As the energy transition accelerates—particularly with the growth of deep-sea exploration and floating offshore wind—the integrity protection of subsea pipeline systems has become increasingly vital. Polyurethane bend stiffeners and restrictors, with their optimized mechanical stiffness matching and exceptional material durability, have become indispensable components of modern subsea infrastructure.
