Submarine cable bend stiffener is a key protective component used to reduce stress concentration in the cable bending transition area, improve bending resistance, and prevent fatigue fracture. It is usually made of high-strength polyurethane material, has excellent elasticity, corrosion resistance and fatigue resistance, and is widely used in offshore wind power, oil and gas platforms, submarine communications and other marine engineering projects, effectively extending the service life of submarine cables and ensuring stable operation of the system.
The role of bending stiffeners

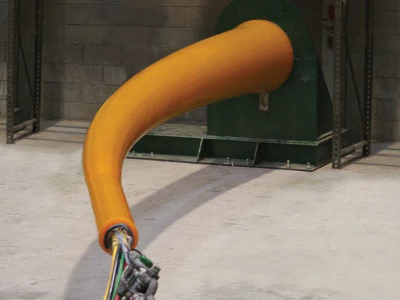

Bend stiffeners are conical components installed near the joints or ports of submarine cables. Their main functions include:
Relieve transition stress: The bend stiffeners are designed with gradient stiffness to effectively reduce the stress transition of the cable from the flexible area to the rigid structure (such as connectors and joints), preventing the cable from being damaged due to stress concentration.
Improve bending resistance: During cable installation or operation, avoid structural damage caused by excessive bending, especially at connection points such as buoys, J-tube outlets, and mooring systems.
Extend service life: Through physical support and protection, the risk of fatigue damage is significantly reduced, and the service life of the cable in complex marine environments is extended.
Improve overall system stability: Enhance the stability of the system under dynamic loads or sudden environmental changes, and reduce maintenance costs.
Advantages of polyurethane materials
At present, high-quality polyurethane elastomers are one of the mainstream materials for manufacturing bending stiffeners. Polyurethane has a series of performance advantages over traditional rubber or plastics:
Excellent elasticity and flexibility: It can recover deformation according to underwater dynamic loads and provide continuous support and cushioning.
High strength and wear resistance: The polyurethane surface has strong wear resistance and is suitable for long-term underwater friction environments.
Strong corrosion resistance: It has good chemical stability in marine environments such as salt water, oil pollution, and ultraviolet rays.
High molding freedom: It can be customized according to cable diameter, bending radius, and environmental requirements to meet the needs of different projects.
Long fatigue life: Maintain structural integrity under cyclic loads and reduce replacement frequency.
Wide range of application scenarios
Bending stiffeners are widely used in a variety of marine engineering and submarine systems, especially in the following scenarios:
Offshore wind farms: Cables are introduced into the water from towers or substations and need to pass through J-tubes or buoy systems. They are prone to bending fatigue and must be protected by reinforcing ribs.
Submarine oil and gas platforms: In riser systems or floating production systems, bending stiffeners can prevent cables from structural fractures at the connection points.
Submarine communication systems: At the interface between the landing section of the submarine cable and the shore facilities, bending is prevented from causing communication interruptions.
Floating production storage and offloading units (FPSO): At the connection between the cable, umbilical cable and the main structure, there must be structural reinforcement to cope with dynamic bending caused by waves.
The safe operation of submarine cables not only depends on their structural design but also on the assistance of key protection components such as bending stiffeners. The use of bending stiffeners made of polyurethane can not only improve the mechanical properties of submarine cables but also show excellent durability and reliability in extreme marine environments. With the continuous expansion of marine engineering, intelligent and safe cable protection solutions will become a new direction for the development of the industry.
If you need customized bending stiffener products or technical support, please contact us. We will provide professional and efficient support services for your marine projects.
