Bend restrictor is a specialized protection device engineered for submarine cables, also known as a polyurethane submarine cable protection tube.
Core Design and Material Advantages
1. Superior Material Properties: Polyurethane material offers high resistance to corrosion, abrasion, and extreme marine temperatures, suitable for long-term service in saltwater, deep-sea, and other harsh offshore environments.

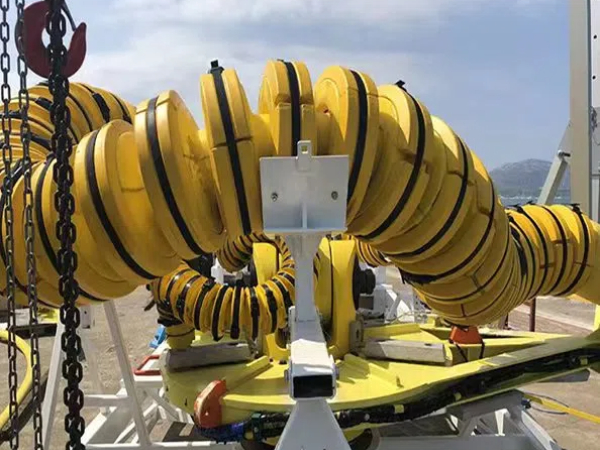

2. Modular Vertebrae Structure: Detachable and modular design enables convenient installation, maintenance, and replacement, even in complex offshore operation scenarios.
3. Adaptive Protection: Unlike traditional rigid protection devices, it can adapt to minor cable displacements while providing reliable protection, ensuring safe operation under dynamic marine conditions.
Typical Applications
The polyurethane vertebrae bend restrictor is widely used in various offshore industrial scenarios, with detailed applications as follows:
1. Offshore Oil and Gas Industry: Applied to PLETs (Pipeline End Terminations), wellheads, protecting connected cables from bending damage caused by wave impact, current scouring, and platform movement.

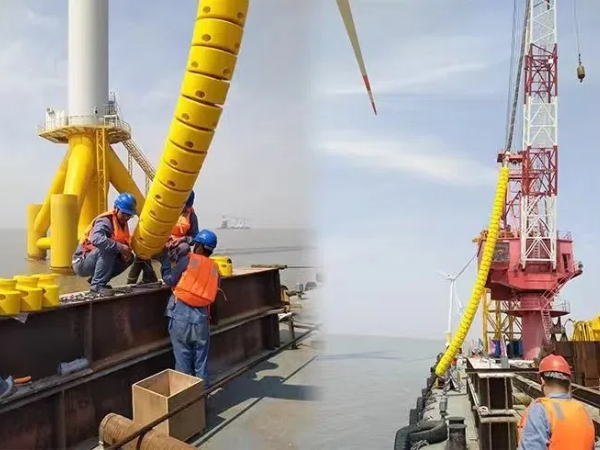

2. Offshore Wind Power Industry: Used at cable joints and J-tube/I-tube exits, safeguarding these parts from excessive bending during installation and long-term operation to ensure stable electrical energy transmission.
Key Note: The restrictor activates its protection function only when the cable reaches a specific bend radius, ensuring the cable maintains normal flexibility during routine operation while providing instant protection once the safe limit is exceeded.
Core Function: Overbending Protection
1. Function Purpose: The primary role is to prevent submarine cables from overbending, which is a common cause of cable failure in marine environments.
2. Risk Background: Submarine cables are subjected to complex external forces, and excessive bending can damage internal conductors, insulation layers, and armor.
3. Risk Mitigation: By limiting the cable’s bending angle to a safe range, the restrictor ensures the cable’s structural integrity and long-term stable operation, avoiding costly failures and environmental hazards.
Philson’s Strengths
1. Efficient Manufacturing: Possesses a comprehensive range of existing tools and mature processes, enabling rapid and reliable production of bend restrictors to meet fast-track project timelines.
2. Customization Capability: Professional engineering team with rich experience in customizing products according to project-specific needs (bend radius limits, size specifications, environmental adaptation).

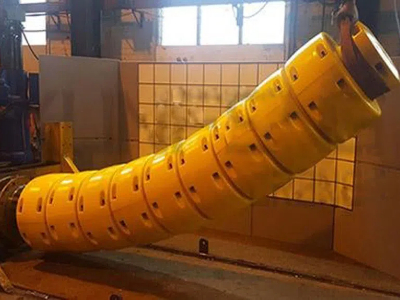

3. Strict Quality Testing: In-house test center equipped with advanced equipment, conducting extensive full-scale tests to ensure products meet the highest industry standards.
4. Service Commitment: Dedicated to providing high-quality, reliable products and efficient services to support the smooth progress of offshore projects.
