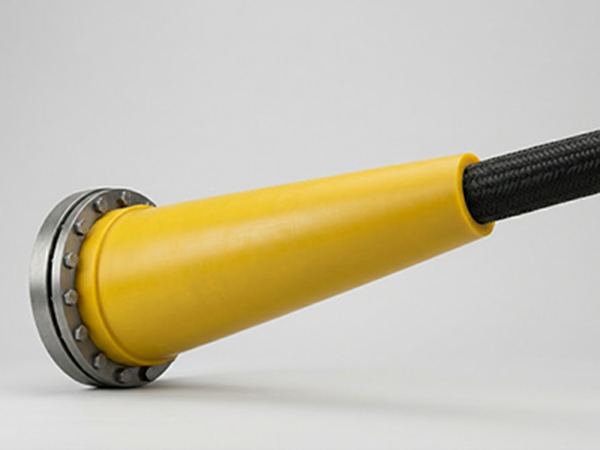

An offshore bend stiffener, a polyurethane elastomer ancillary device for flexible risers, facilitates a gradual stiffness transition at hang-off locations to eliminate overbending at the rigid connection interface.
Bend Stiffener Material: Polyurethane Elastomer with a Metal Insert
The performance and service life of a bend stiffener are determined by its material composition and the integrity of its structural reinforcement. This component typically integrates a high-performance polymer body with a robust metallic mounting interface.
Material Properties: High-Grade Polyurethane (PU) Elastomer
Polyurethane is the industry standard for subsea dynamic protection due to its unique elastomeric properties, which allow it to absorb energy and recover from deformation. Key characteristics include:
1. Hydrolysis Resistance: Specifically formulated to maintain molecular stability and physical properties during permanent immersion in seawater.
2. Dynamic Fatigue Endurance: Engineered to withstand millions of oscillation cycles caused by wave and current motion without experiencing stress-cracking or permanent set.
3. Abrasion and Chemical Resistance: Provides a durable outer shell that resists mechanical wear from external contact and remains inert when exposed to offshore fluids, hydrocarbons, or cleaning chemicals.
Structural Reinforcement: The Metal Insert
To ensure a secure connection to the rigid offshore structure (such as an I-Tube or platform deck), the bend stiffener incorporates an internal metal interface.
1. Integrated Flange: Usually constructed from carbon steel (often coated for corrosion resistance) or stainless steel (316L or Duplex).
2. Bonding Technology: The metal insert is chemically bonded to the polyurethane during the molding process. This ensures that the high axial and bending loads are transferred safely from the flexible line through the elastomer to the rigid mounting point.
3. Corrosion Protection: For harsh offshore environments, the exposed metal surfaces are typically treated with marine-grade epoxy coatings or cathodic protection to prevent oxidation.
Dynamic Bend Stiffener Application
In the offshore industry, Dynamic Bend Stiffeners are engineered for high-motion environments where subsea lines are subjected to continuous hydrodynamic forces and vessel excursions. Unlike static applications, dynamic stiffeners must endure constant cyclic loading over a typical service life of 20 to 25 years.
1. Floating Production Storage and Offloading (FPSO): The most common application is at the interface between the flexible riser and the floating vessel. As the FPSO moves with the waves (heave, pitch, and roll), the riser is pulled in multiple directions. The stiffener is installed at the I-Tube or J-Tube exit to manage the bending stresses caused by the vessel's movement relative to the seabed.
2. Offshore Wind Energy (Dynamic Cables): With the rise of floating offshore wind turbines, dynamic bend stiffeners are used to protect the array cables that connect moving turbines to each other or to a substation. They prevent the cable from kinking at the entry point of the turbine foundation, where the cable transitions from a hanging state to a secured internal connection.
3. Subsea Umbilicals: Umbilicals carry hydraulic power, chemicals, and fiber optic signals to subsea wellheads. These lines are often dynamic in the water column. Stiffeners are utilized at the termination assembly to protect the internal steel tubes and electrical components from fatigue-induced failure.
Conclusion: The Strategic Importance of Bend Stiffeners in Offshore Infrastructure
In summary, the Bend Stiffener is a critical engineering solution for maintaining the structural integrity of flexible risers, cables, and umbilicals. By combining the high-performance damping properties of Polyurethane Elastomers with the mechanical strength of chemically bonded metal inserts, these devices provide a reliable transition from flexible lines to rigid structures.
