Engineered for the rigorous demands of offshore deep-sea drilling and subsea energy sectors, this system represents a breakthrough in subsea asset protection. It innovatively integrates Mechanical Bend Restriction (MBR Protection) with Strategic Buoyancy Compensation, safeguarding subsea cables, umbilicals, and flexible pipes from both excessive bending and gravitational fatigue.
Advanced Structure & Engineering
1. Dual-Function Composite Buoyancy
High-Performance Syntactic PU: Utilizing high-density, marine-grade syntactic polyurethane, the system provides superior net buoyancy, exceptional compressive strength, and low water absorption—ensuring long-term stability in high-pressure deep-sea environments.
Precision Uplift Calibration: Buoyancy levels are precisely tuned to project specifications, allowing the cable to maintain the ideal "Lazy-S" or "Wave" configuration within the water column.
2. Precision Bend Limitation Technology

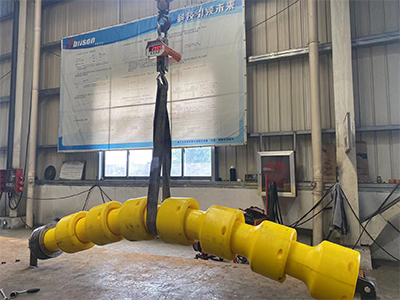

"Vertebrae" Interlocking Segments: The system utilizes a modular interlocking Vertebrae Bend Restrictor (VBR) design. This allows fluid movement within safe limits while providing a rigid mechanical stop once the Minimum Bend Radius (MBR) is reached.
Tunable Stiffness: The interlocking geometry and material density can be adjusted to match the dynamic requirements and bending stiffness of various umbilical diameters.
3. Optimized for Offshore Efficiency

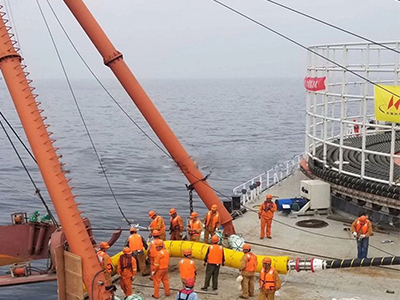

Rapid Deployment: The modular, bolt-on design allows for fast installation on-deck or via ROV (Remotely Operated Vehicle), significantly narrowing installation windows even in harsh weather.
Zero-Maintenance Reliability: Constructed from corrosion-resistant and anti-fouling materials, the system is designed for a service life of 25+ years in high-salinity and high-pressure zones.
Key Operational Benefits
1. Ultimate Structural Integrity
Stress Neutralization: Effectively mitigates mechanical stress at Touchdown Points (TDP) and J-tube interfaces, eliminating the risk of kinking, bird-caging, or fatigue failure.
Lifespan Extension: By balancing static and dynamic loads, the system reduces cumulative strain on internal copper conductors and optical fibers, maximizing the asset's operational life.
2. Dynamic Stability & Hydrodynamic Control
Optimized Positioning: Integrated buoyancy keeps the cable suspended at the desired depth, preventing hazardous contact with the seabed or interference with existing subsea infrastructure.
Vibration Damping: The added mass and specialized profile help dampen Vortex-Induced Vibrations (VIV), ensuring stable performance in high-current environments.
3. Superior Project Economics
Minimized Downtime: Enhanced protection drastically reduces the frequency of expensive subsea interventions and emergency cable repairs.
TCO Optimization: Combining buoyancy and bend restriction into a single integrated unit simplifies procurement and significantly reduces installation vessel time and costs.
Diverse Application Fields
Offshore Oil & Gas: Critical protection for deep-sea pipelines, umbilicals, and flying leads.
Marine Renewable Energy: Essential for dynamic export cables in floating offshore wind (FOW) and tidal energy arrays.
Global Telecommunications: Safeguarding deep-sea fiber-optic hubs and repeater interfaces.
Research & Defense: Protecting sensitive towed sensor arrays and environmental monitoring cables.
Conclusion
The Philson Buoyant VRB Bend Restrictor is the definitive choice for subsea asset protection. By seamlessly merging buoyancy, flexibility, and mechanical strength, it provides an indispensable safeguard for the world’s most valuable subsea infrastructure. [Request a Quote]
