Bend limiter definition and significance
A bend restrictor, also called a bending restrictor or cable bend limiter, is a protective device designed to prevent cables, umbilicals, and flexible pipelines from exceeding their minimum bend radius under dynamic loads. By maintaining a safe bending profile, bend restrictors protect the mechanical and structural integrity of the cable, ensuring long-term performance in harsh offshore environments.
Why bends occur and the importance of protection
Bends typically occur at vulnerable transition points such as cable terminations, touchdown zones, and connection interfaces. Dynamic forces from waves, currents, vessel motion, or equipment movement can cause repeated flexing. Without proper protection, excessive bending can lead to fatigue, internal damage, and costly downtime.
Design features

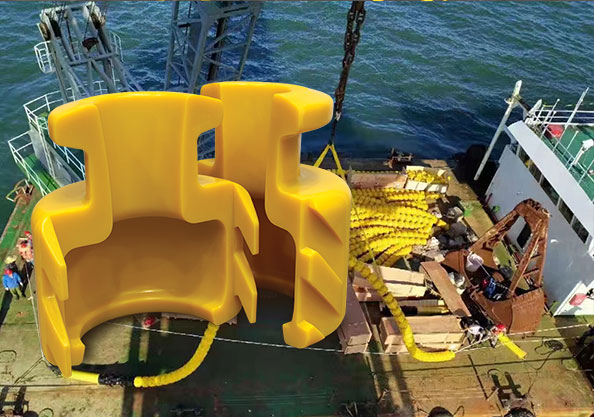

Symmetrical, interlocking segments form a flexible string that allows movement within safe limits.
Metal ring or nut fixation – ensures secure attachment to the cable or pipeline.
Automatic engagement at limit – only when the bending moment nears the set threshold does the restrictor string lock into a rigid protective configuration.
Polyurethane material advantages
Philson bend restrictors are manufactured from high-performance polyurethane, offering:
Hydrolytic corrosion resistance – withstands long-term seawater exposure.
UV resistance – maintains performance under prolonged sunlight.
High resilience – absorbs impact without permanent deformation.
Friction and tear resistance – durable under continuous movement.
Rigidity with flexibility – balances structural support with controlled motion.
Lightweight vs. Metal – easier transport and offshore handling.
Installation method

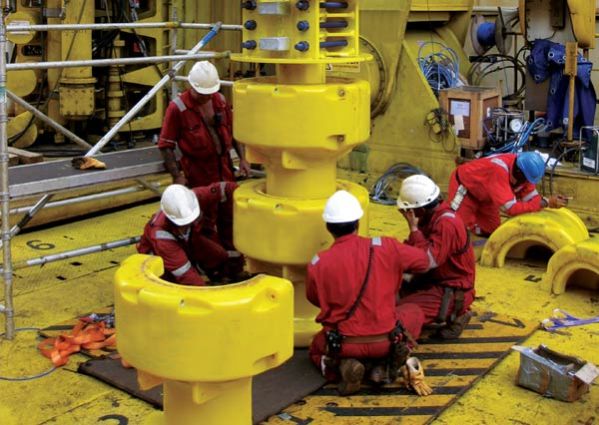

Bend restrictors can be installed before or after cable or pipeline deployment, depending on site conditions and operational needs. This flexibility reduces installation time and allows adaptation to different project setups.
Application scenarios
Bend restrictors are widely used in:
Offshore oil & gas – protecting dynamic umbilicals, risers, and flexible flowlines.
Offshore wind power – safeguarding inter-array and export cables.
Other subsea systems – including tidal energy and subsea communication cables.
Typical installation locations include
Cable touchdown points on the seabed.
J-tube exits on offshore platforms or wind turbine foundations.
Cable terminations at subsea equipment or manifold connections.
Why choose Philson bend restrictors
With in-house design and manufacturing capabilities, Philson provides bend restrictors engineered for extreme offshore conditions. Our polyurethane components combine durability, ease of handling, and proven protection, reducing maintenance costs and increasing operational reliability.
Contact us today for technical specifications, custom designs, and competitive pricing.
