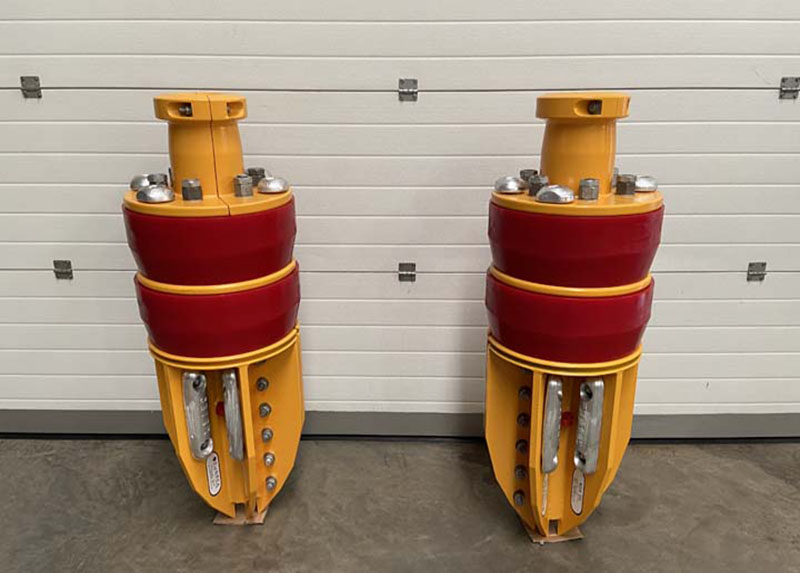

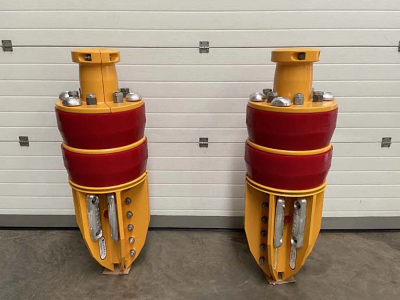

In subsea cable installation, protecting and guiding the cable as it enters and exits a J-tube is critical to prevent damage. The J-tube centraliser ensures that the subsea power cable or umbilical remains securely aligned inside the J-tube, avoiding abrasion, crushing, or excessive bending that can compromise cable integrity.
Design features
J-tube centralisers are designed with the following characteristics:
• Split-shell structure: Allows easy installation around pre-laid cables without disconnection.
• High-strength materials: Typically made from polyurethane or a combination of polymer and steel, offering excellent wear resistance, corrosion resistance, and marine durability.
• Custom sizing: Manufactured to suit cable diameters and J-tube dimensions, ensuring a snug yet flexible fit.
• Low-friction inner surface: Minimises abrasion during pull-in and operation.
Functions of a J-tube centraliser
Cable alignment: Keeps cables centralised within the J-tube to prevent uneven load or rubbing against sharp edges.
• Vibration and impact absorption: Reduces the effects of dynamic movement caused by waves, currents, or vessel motion.
• Protection from mechanical damage: Avoids crushing and surface wear, extending the service life of subsea cables.
• Facilitates safe installation: Ensures smooth pull-in operations, reducing the risk of cable jamming or twisting.
Usage scenarios
Cable centralisers are widely used in offshore and subsea engineering, particularly in:
• Offshore wind farms: Protecting inter-array and export power cables as they pass through J-tubes on turbine foundations.
• Oil and gas platforms: Guiding umbilicals and riser cables in dynamic environments.
• Subsea cable landings: Ensuring secure transition of power cables from seabed to onshore facilities.
• Floating production units (FPSOs and FPUs): Supporting flexible risers and umbilicals entering J-tubes.
