How Bend Stiffeners Protect Dynamic Offshore Systems
As the global energy transition pushes further into deep-water territories, floating offshore wind farms and deep-water oil and gas platforms are facing unprecedented environmental challenges. In these complex dynamic offshore systems, protecting the "lifelines"—flexible risers, umbilicals, and power cables that connect the seabed to surface facilities—has become a focal point of engineering excellence. The "unsung hero" in this defense is the Bend Stiffener.
The Core Challenge: Fatigue and Over-Bending
Under the continuous influence of waves, currents, and platform motions, the connection points (hang-off points) where flexible pipes meet floating structures endure massive mechanical stress. Without adequate protection, these cables are highly susceptible to:
Over-bending: Where the bending radius exceeds the design limit, leading to catastrophic structural failure.
Bending Fatigue: Resulting from millions of cyclic motions that degrade materials over time.
Bend Stiffeners: A Masterclass in Engineering Design

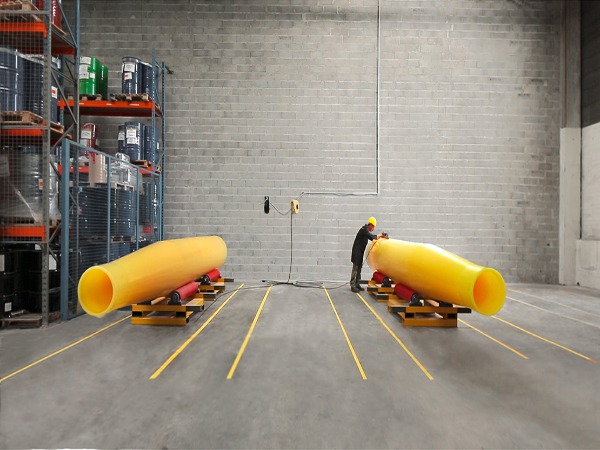

Typically manufactured from high-performance polyurethane elastomers, bend stiffeners feature a conical structure. Through precision engineering, they provide a critical physical barrier for dynamic systems:
1. Seamless Stiffness Transition
At the connection point, the system transitions abruptly from a rigid platform structure to a flexible cable. The bend stiffener provides a gradual stiffness distribution. By doing so, it dissipates concentrated bending forces across a longer section of the pipe, preventing the formation of high-stress "hotspots."
2. Maintaining Minimum Bend Radius (MBR)
Through its specific geometry and mechanical properties, the stiffener physically limits the degree of curvature. This ensures the cable always operates above its Minimum Bend Radius ($MBR$), protecting internal components such as fiber optics or steel armor layers from crushing or snapping.
3. Environmental Durability and Dynamic Response
Modern bend stiffeners are designed for the harshest marine environments. They must resist seawater corrosion, UV aging, and constant thermal cycling over a service life of 20 to 25 years while maintaining a constant modulus of elasticity.
Applications: From Oil & Gas to Renewable Energy

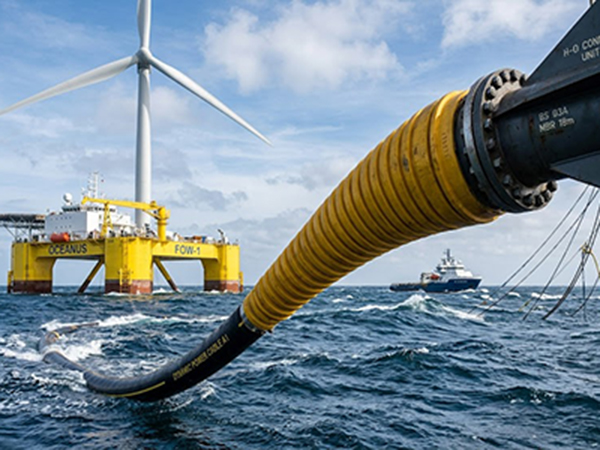

As offshore wind evolves toward Floating Offshore Wind (FOW) technology, the protection of dynamic subsea cables has become mission-critical.
Application | Protected Component | Core Value |
Deep-water Oil & Gas | Flexible Risers & Umbilicals | Prevents hydrocarbon leaks and ensures production safety. |
Floating Wind | Dynamic Power Cables | Ensures stable high-voltage transmission and reduces O&M costs. |
Subsea Mining | Vertical Transport Pipes | Manages dynamic oscillations under extreme payloads. |
Industry Outlook
Experts note that as offshore projects move into deeper waters (exceeding 2.000 meters) and harsher climates, the design of bend stiffeners has evolved from simple empirical formulas to sophisticated Finite Element Analysis (FEA).
"A bend stiffener is more than just a 'protective sleeve'; it is an insurance policy for the entire lifecycle of a dynamic system," says a senior subsea engineer. "In terms of reducing unplanned downtime and avoiding costly deep-sea repairs, the ROI is immeasurable."
Conclusion
As an indispensable link in dynamic offshore systems, bend stiffeners are bridging the gap between material science and mechanical design, providing solid support for humanity’s exploration of deep-blue energy.
