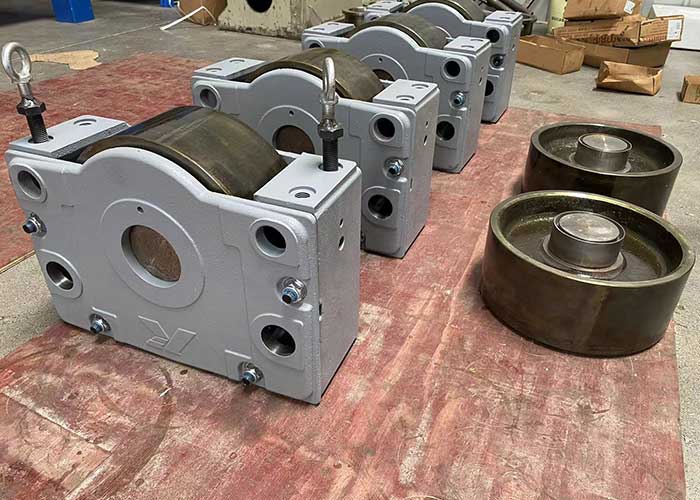

The DRS 112 Wheel Block is a model under DRS-M travel wheel block system. It has a travel wheel diameter of 112 mm and a load capacity of 2.75 tons. Featuring a compact size and moderate load-bearing capacity, it can meet the travel needs of various industrial equipment.
Materials & Structure
The housing of this travel wheel block is made of high-quality die-cast aluminum. This material not only has light weight and good formability, but also offers high dimensional stability and precision, providing optimal protection for the travel wheels and rolling bearings. Meanwhile, its surface is coated with a powder coating with a high protection rating, which can effectively prevent corrosion. The travel wheels are usually made of materials such as ductile cast iron steel, featuring self-lubrication and wear resistance, and have a long designed service life.
Design Features
The DRS 112 Wheel Block adopts a modular design, allowing flexible configuration and combination according to specific needs. Through the integrated threaded holes at the time of delivery, optional accessories such as wheel guides and track cleaning devices can be installed, facilitating users to customize based on actual working conditions. In addition, the product is equipped with a mechanical wear measurement device. Users can use this device to detect the current wear condition of the travel wheels, and the results are displayed on a color marker in an easy-to-read manner. This helps users timely understand the wear status of the equipment and better plan maintenance or replacement.
Installation & Maintenance
Its installation and alignment are relatively simple. The innovative installation locking device enables quick replacement of the travel wheel block without time-consuming readjustment. The alignment fixing device is fixed on the steel structure, ensuring the precise positioning of the travel wheel block even after replacement. At the same time, the five-sided enclosed cast housing reliably protects the travel wheels from any mechanical impact, reducing the frequency and workload of maintenance.
Application Fields
The DRS 112 Wheel Block is widely used in various traveling mechanisms, such as crane traveling mechanisms, electric trolleys, mobile workshops, and mobile workstations. It can provide stable and reliable support for the movement of these devices.
If you need a DRS 112 wheel block, please feel free to contact us.
